How to choose a spare part

Delphin CHIMERA NXT

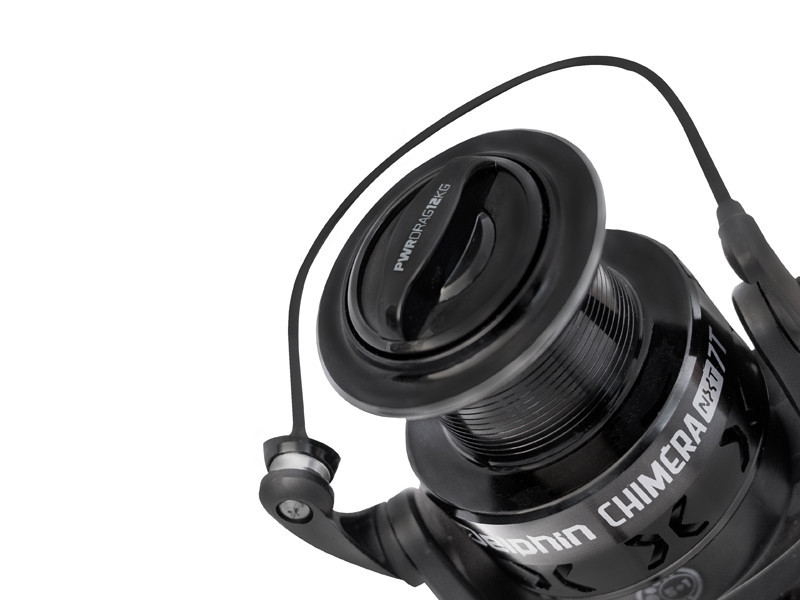

After the successful range of reels called Chimera, the Delphin brand is introducing its more elaborate successor the NXT. A reel with a teaser lever that is clearly distinguished from its predecessor with a new stylish design. With a dark grey and black finish in combination with several detailed elements it creates a very interesting and elegant whole. The specific elaboration of the spool and the wooden handle knob further accentuate its originality. The key feature of the reel is hidden inside of it, with the bearings and the main shaft made of stainless steel. It is these components that ensure smooth and easy usage and thanks to their material design there is no need to worry about premature wear and tear. Coupled with a sturdy body they ensure a long lifespan and trouble-free usage. In total, the reel has six (5+1) ball bearings and an ideal gear ratio of 5.5:1. The undisputed advantage is the POWER fast drag knob, with a drag force of up to 12 kg, which is an excellent value for reels of this size. Thanks to this you will be able to react very quickly to the blows from the fish on the line and a complete release of the drag will be a matter of one turn. The base spool of the reel is deep and conical. The line can easily unwind from spool during casting so that your rig can easily reach a couple meters more. Besides that the spool also has two metal clips, which allow the line to be clipped to make each of your casts very precise. One more bonus is a shallow metal spool that comes free of charge in the package! In the back part you will find a secondary drag knob that controls the teaser lever located directly above it. Thanks to its parameters it wont handle just fishing for carp, but also any kind of whitefish whether you opt for bottom or feeder fishing. Of course it is possible to purchase additional spools.
Technical parameters:
Model: Delphin CHIMERA 5T
Deep spool capacity mm/m: 0.25/320, 0.28/250, 0.30/225
Shallow spoolcapacity mm/m: 0.25/210, 0.28/170, 0.30/150
Gear ratio: 5.5:1
Number of bearings: 5+1
Weight: 420g
Model: Delphin CHIMERA 6T
Deep spool capacity mm/m: 0.25/420, 0.28/340, 0.30/300
Shallow spoolcapacity mm/m: 0.25/280, 0.28/225, 0.30/200
Gear ratio: 5.5:1
Number of bearings: 5+1
Weight: 460g
Model: Delphin CHIMERA 7T
Deep spool capacity mm/m: 0.25/560, 0.28/450, 0.30/400
Shallow spoolcapacity mm/m: 0.25/390, 0.28/315, 0.30/280
Gear ratio: 5.5:1
Number of bearings: 5+1
Weight: 510g
Technical parameters:
Model: Delphin CHIMERA 5T
Deep spool capacity mm/m: 0.25/320, 0.28/250, 0.30/225
Shallow spoolcapacity mm/m: 0.25/210, 0.28/170, 0.30/150
Gear ratio: 5.5:1
Number of bearings: 5+1
Weight: 420g
Model: Delphin CHIMERA 6T
Deep spool capacity mm/m: 0.25/420, 0.28/340, 0.30/300
Shallow spoolcapacity mm/m: 0.25/280, 0.28/225, 0.30/200
Gear ratio: 5.5:1
Number of bearings: 5+1
Weight: 460g
Model: Delphin CHIMERA 7T
Deep spool capacity mm/m: 0.25/560, 0.28/450, 0.30/400
Shallow spoolcapacity mm/m: 0.25/390, 0.28/315, 0.30/280
Gear ratio: 5.5:1
Number of bearings: 5+1
Weight: 510g
Ordering nr. | Product, size | Retail price | In stock | |||||
---|---|---|---|---|---|---|---|---|
Accessories | ||||||||
101001234 | Deep spool Delphin CHIMERA NXT 5T DP aluminium |
14.50 € |
|
|||||
101001235 | Deep spool Delphin CHIMERA NXT 6T DP aluminium |
14.50 € |
|
|||||
101001236 | Deep spool Delphin CHIMERA NXT 7T DP aluminium |
14.50 € |
|
|||||
101001237 | Shallow spool Delphin CHIMERA NXT 5T SH aluminium |
14.50 € |
|
|||||
101001238 | Shallow spool Delphin CHIMERA NXT 6T SH aluminium |
14.50 € |
|
|||||
101001239 | Shallow spool Delphin CHIMERA NXT 7T SH aluminium |
14.50 € |
|
